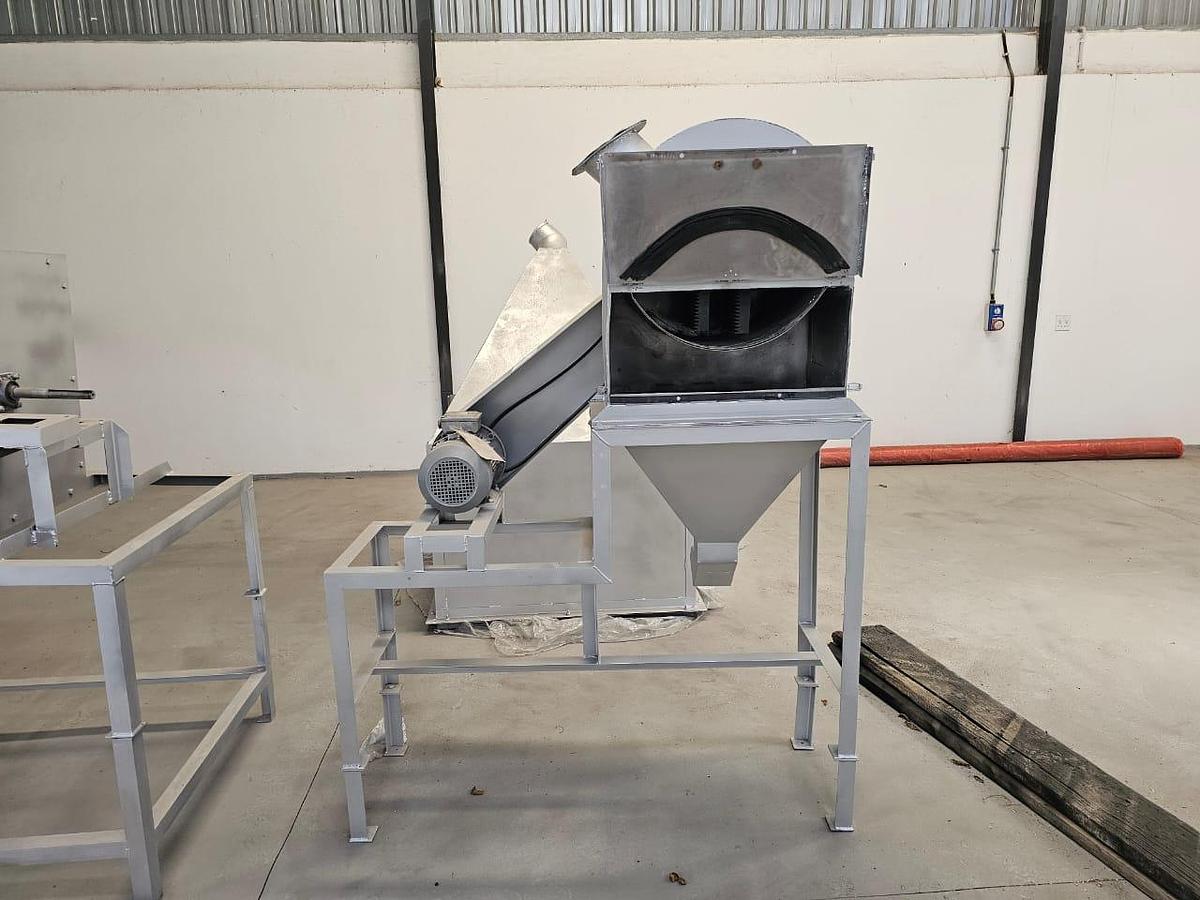

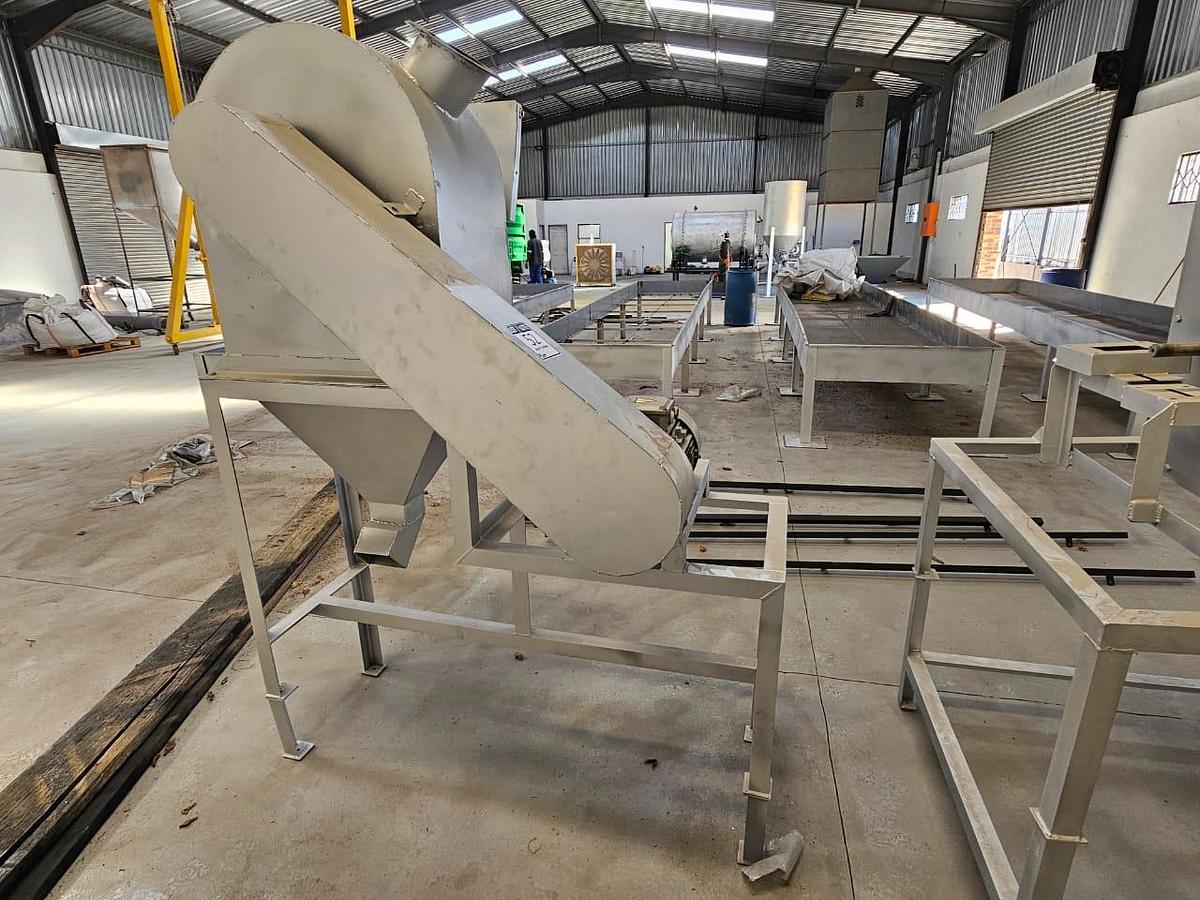

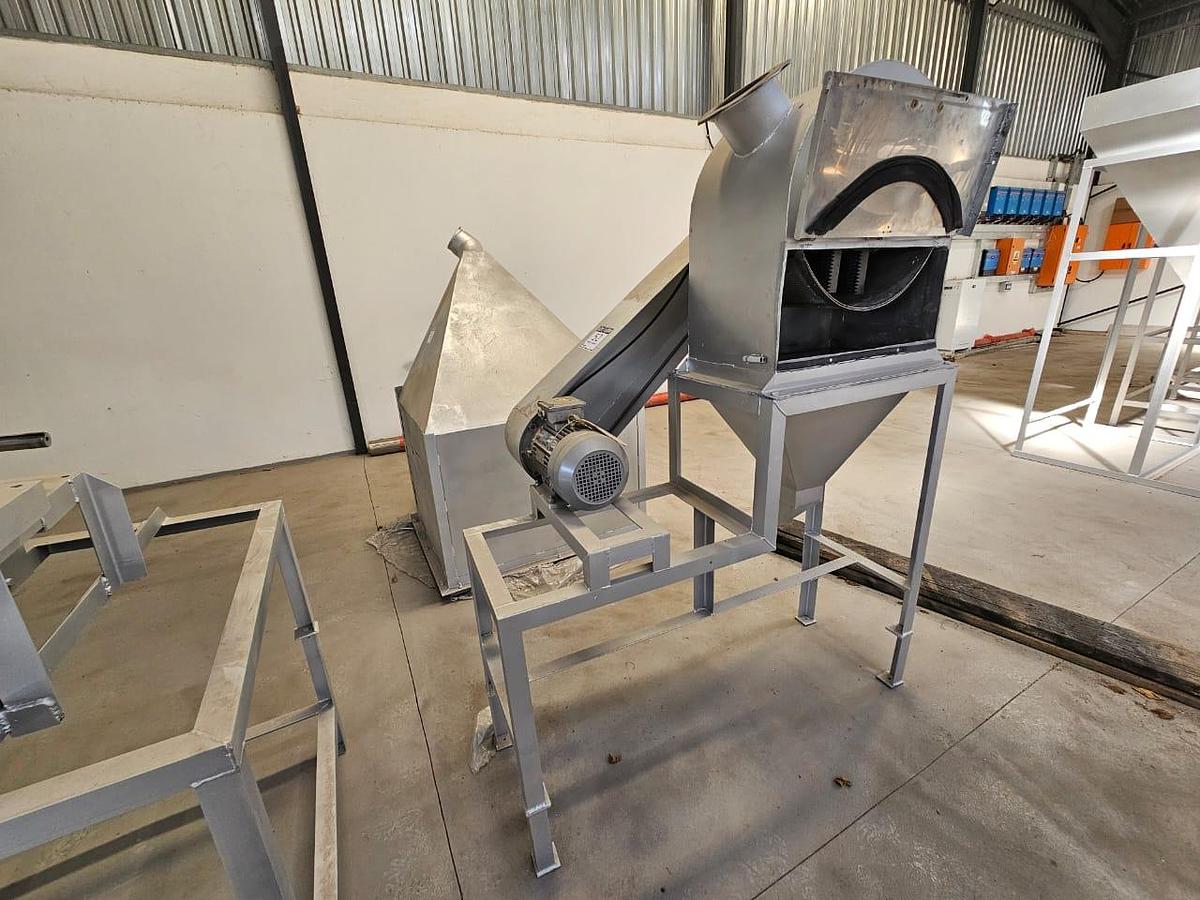

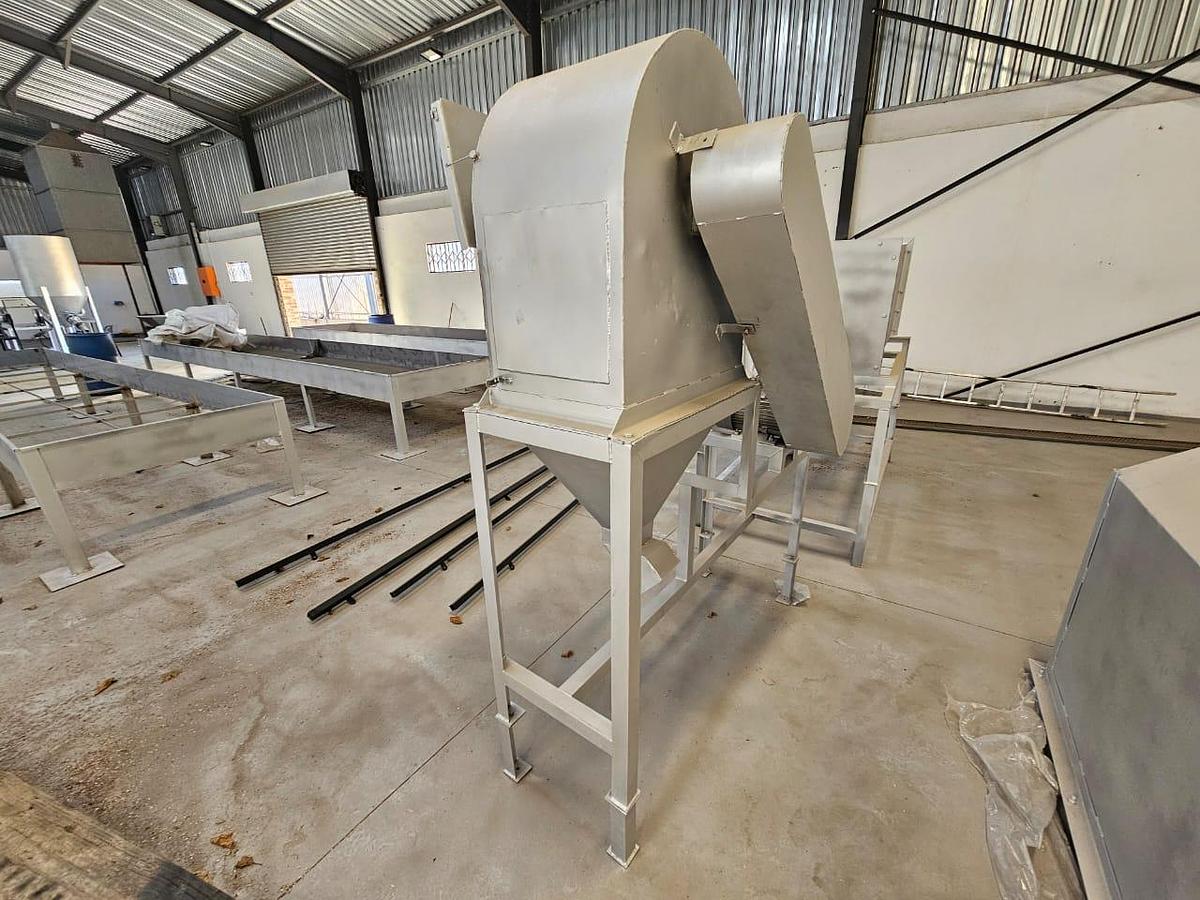

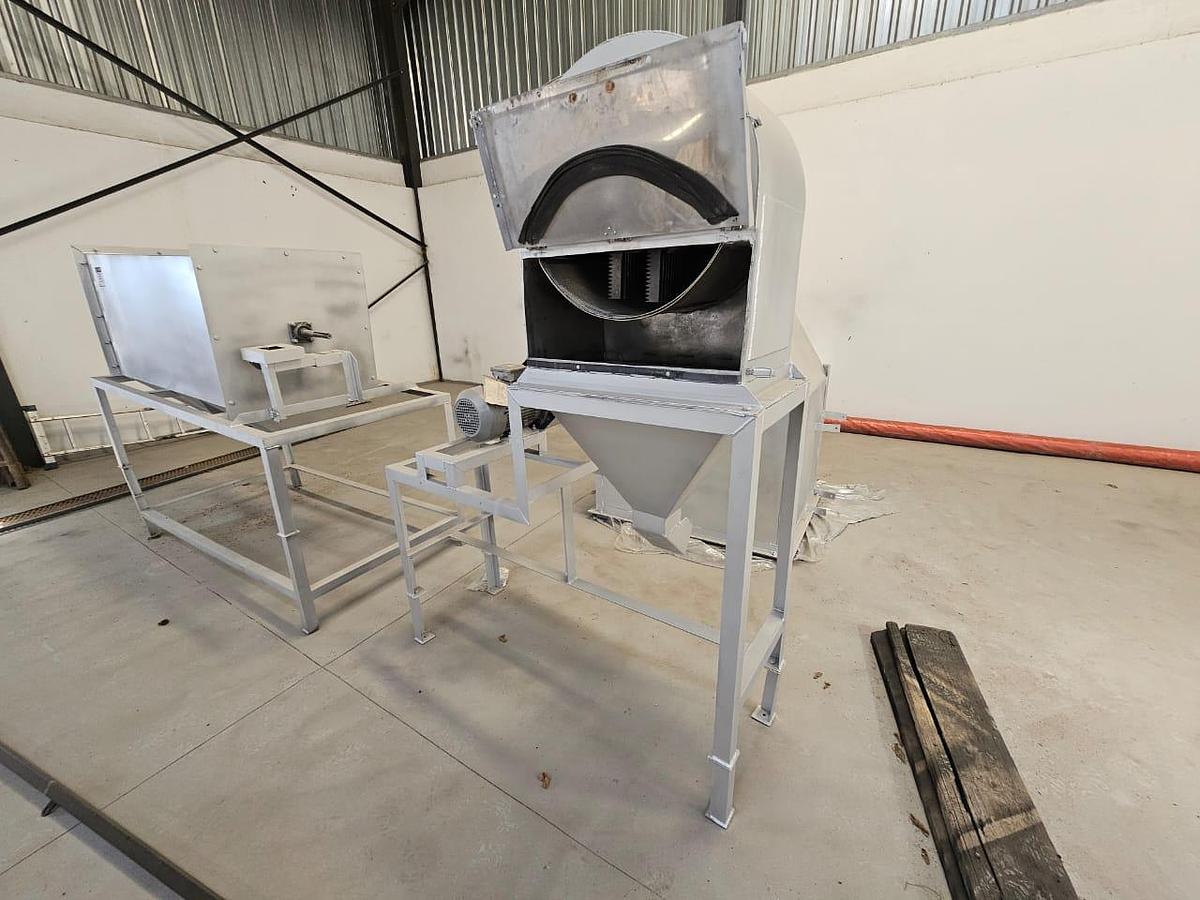

SS304 STAINLESS STEEL HAMMER MILL

Description:

PRODUCT OVERALL DIMENSIONS GENERAL INFORMATION

PRODUCT OVERALL DIMENSIONS HEIGHT: 2020 MM

PRODUCT OVERALL DIMENSIONS WIDTH: 680 MM

PRODUCT OVERALL DIMENSIONS LENGTH: 1500 MM

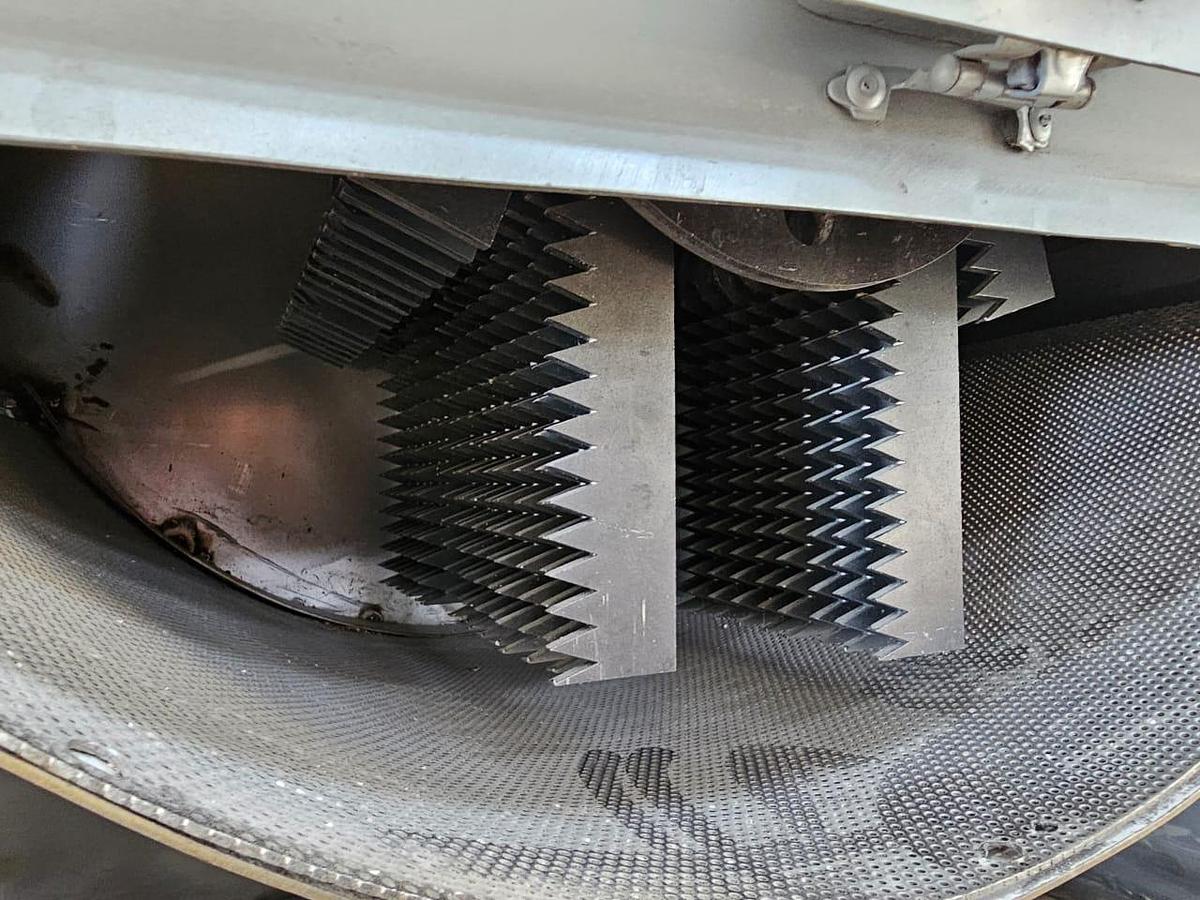

PRODUCT MILLING ASSEMBLY GENERAL INFORMATION

PRODUCT MILLING ASSEMBLY NUMBER OF BLADES: 64

PRODUCT MILLING ASSEMBLY TEETH PER BLADE: 14

PRODUCT MILLING ASSEMBLY BLADE MATERIAL: MILD STEEL

PRODUCT MILLING ASSEMBLY CONDITION: NEW (TEETH UNUSED, NO VISIBLE WEAR)

PRODUCT SIEVE SPECIFICATIONS GENERAL INFORMATION

PRODUCT SIEVE SPECIFICATIONS APERTURE SIZE: 1.7MM

PRODUCT SIEVE SPECIFICATIONS PITCH: 4 MM

PRODUCT SIEVE SPECIFICATIONS TYPE: REMOVABLE SIEVE

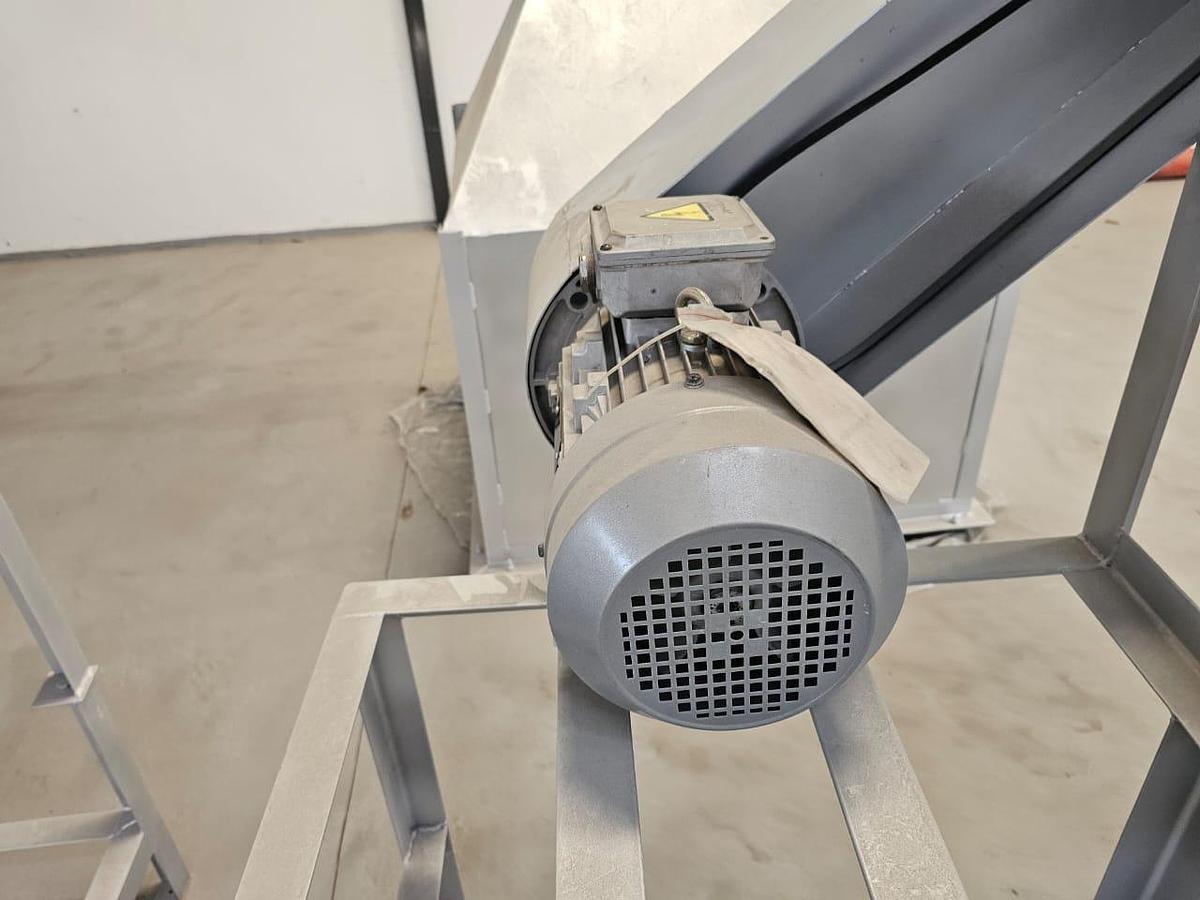

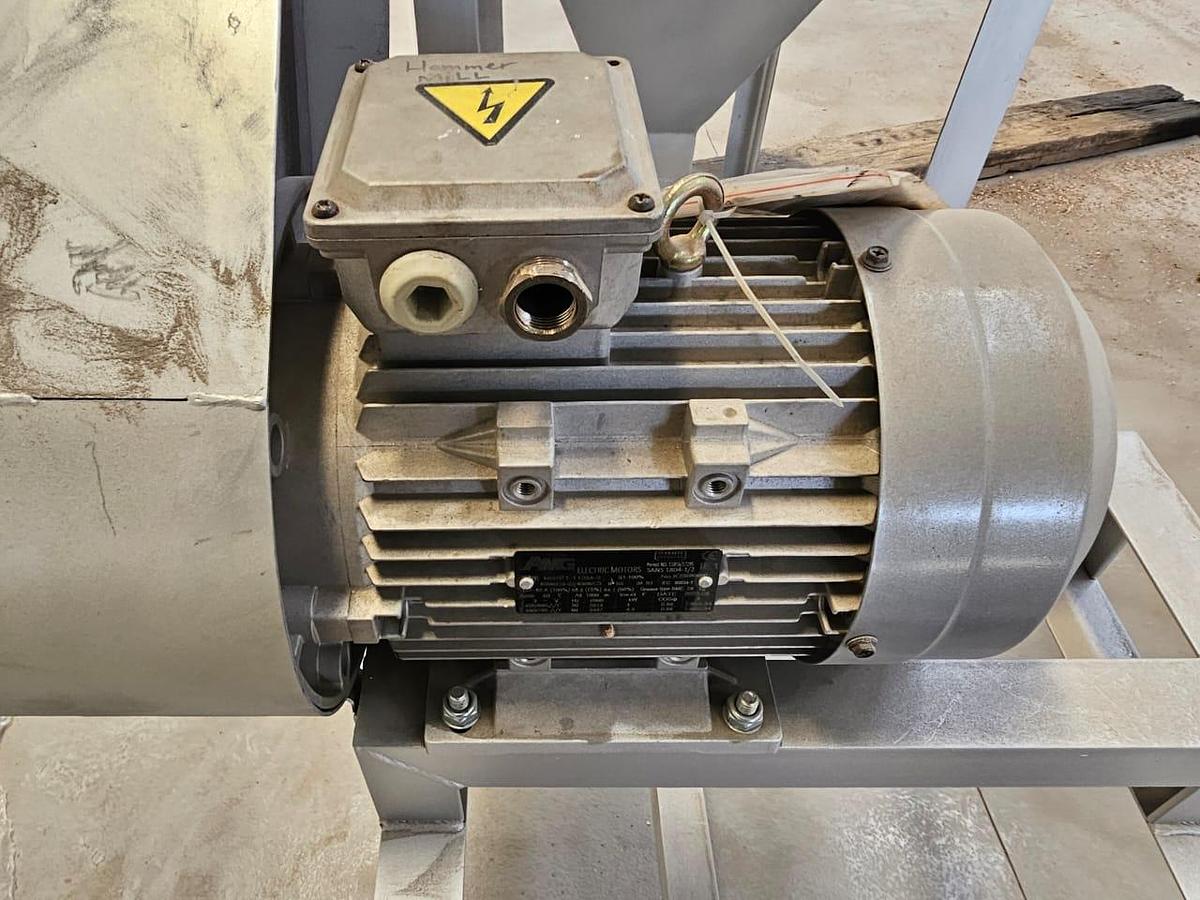

PRODUCT MOTOR SPECIFICATIONS GENERAL INFORMATION

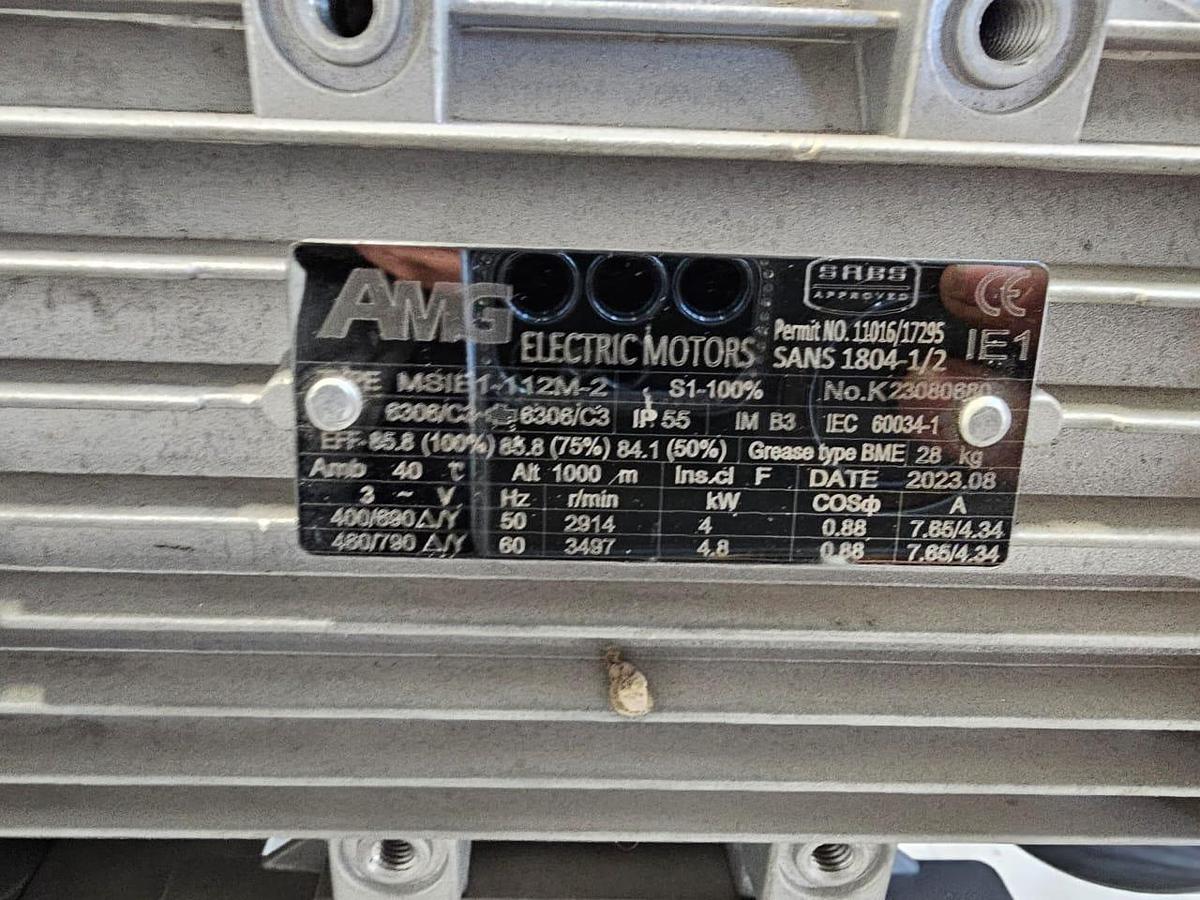

PRODUCT MOTOR SPECIFICATIONS MOTOR TYPE: AMG ELECTRIC MOTOR

PRODUCT MOTOR SPECIFICATIONS MODEL: MSIE1-112M-2

PRODUCT MOTOR SPECIFICATIONS POWER RATING KW: 4

PRODUCT MOTOR SPECIFICATIONS SPEED / RPM: 2914

PRODUCT INLET & OUTLET GENERAL INFORMATION

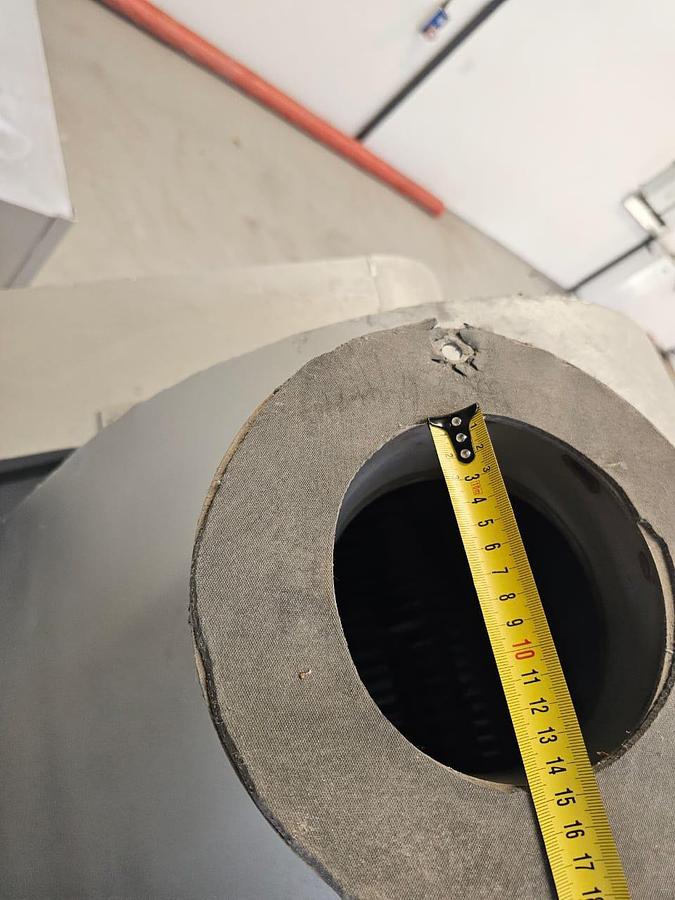

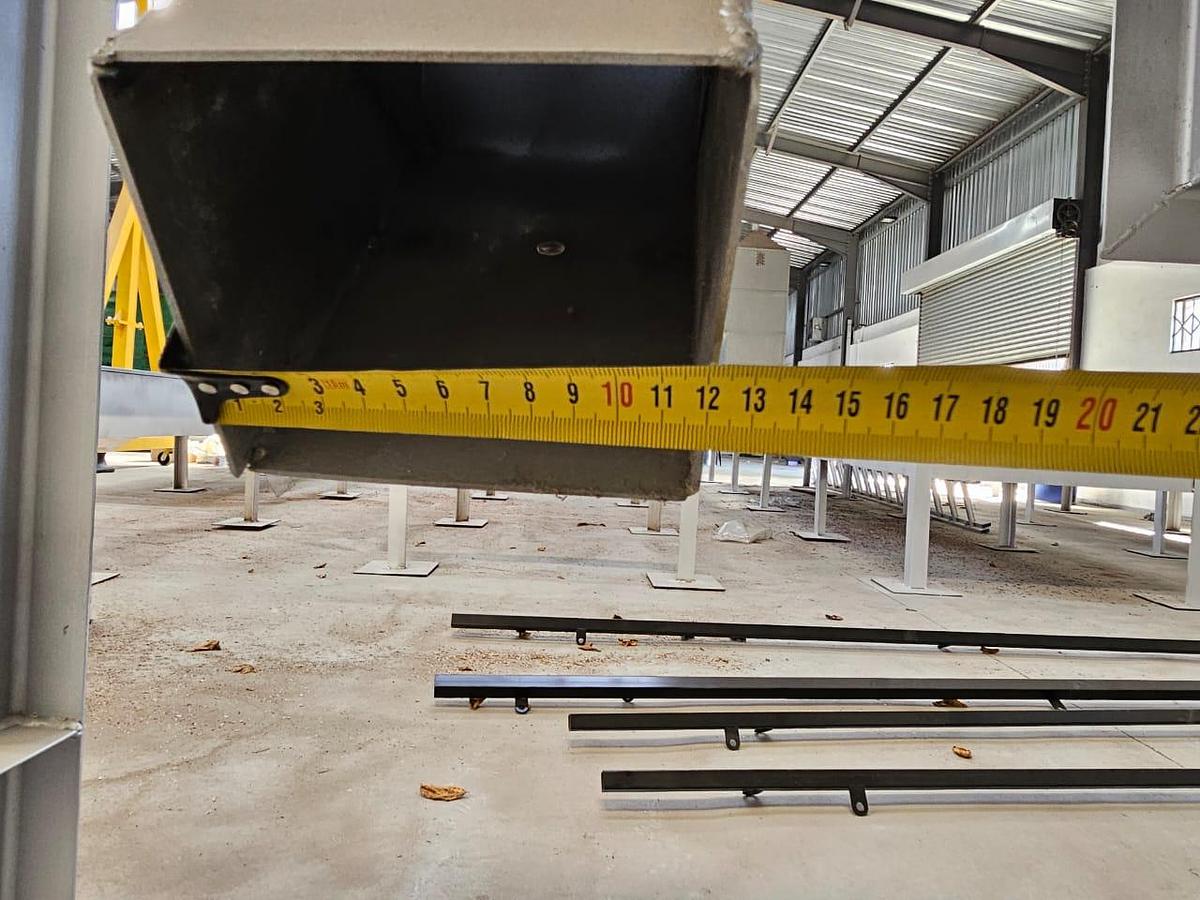

PRODUCT INLET DIAMETER: 100 MM

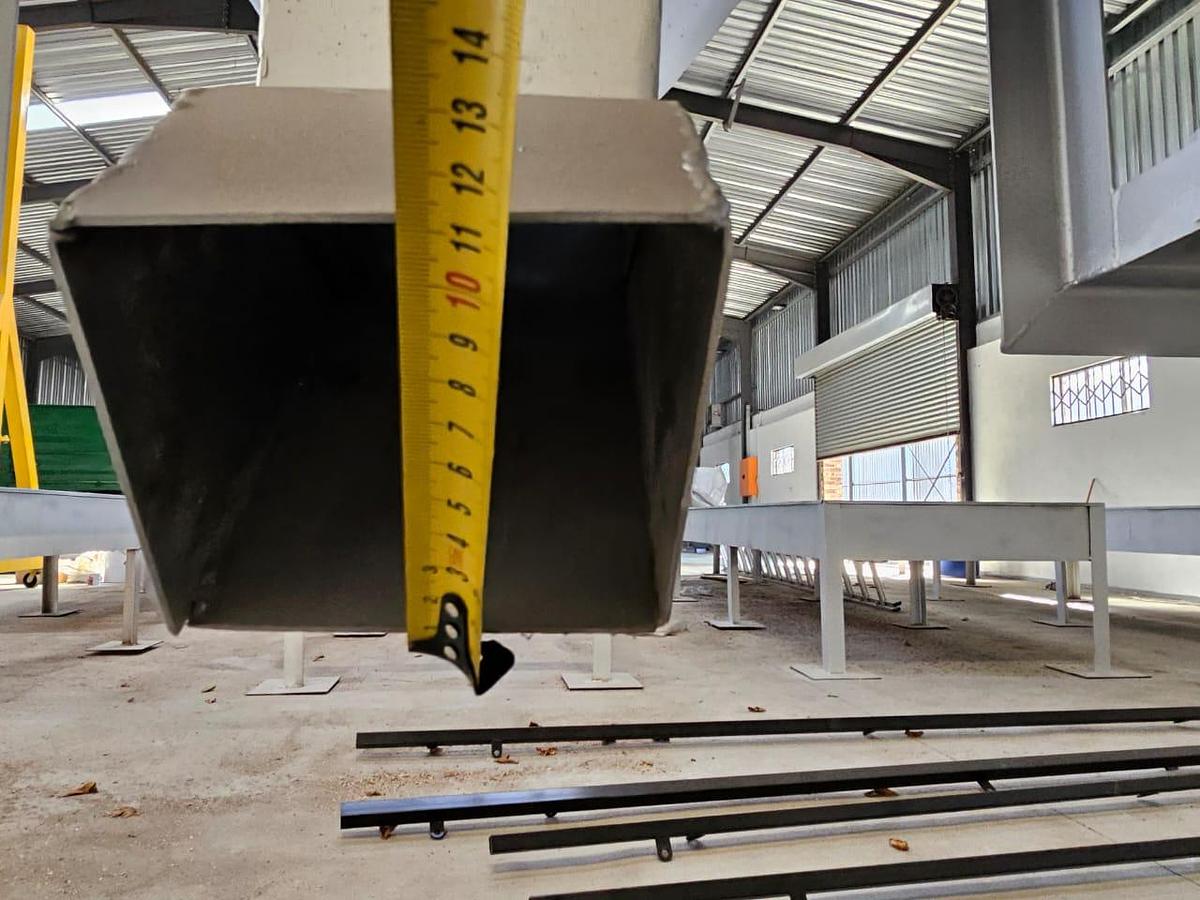

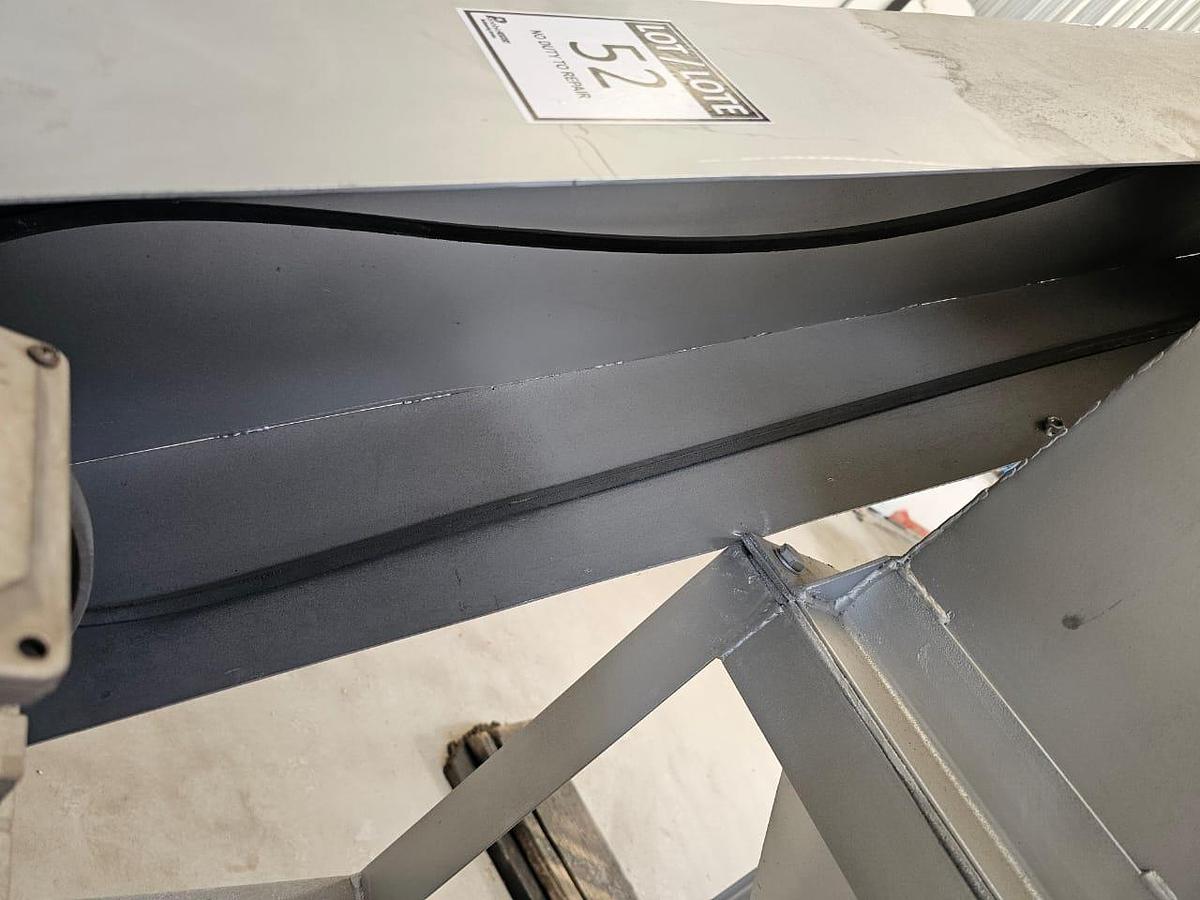

PRODUCT OUTLET TYPE: RECTANGULAR

PRODUCT OUTLET SIZE: APPROX. 800-900 MM X 700 MM

PRODUCT MATERIAL & FINISH GENERAL INFORMATION

PRODUCT MATERIAL MAIN BODY: STAINLESS STEEL (SS304)

PRODUCT FINISH/COLOR: SPRAY-PAINTED SILVER

PRODUCT GENERAL DESCRIPTION GENERAL INFORMATION

PRODUCT INDUSTRIAL-GRADE: HAMMER MILL SUITABLE FOR FINE GRINDING APPLICATIONS (1-2 MM OUTPUT DEPENDING ON MATERIAL)

PRODUCT DESIGNED FOR: DURABILITY WITH STAINLESS STEEL BODY AND HIGH-SPEED MOTOR

PRODUCT REMOVAL SIEVE: ALLOWS FOR MAINTENANCE AND PARTICLE SIZE CONTROL
