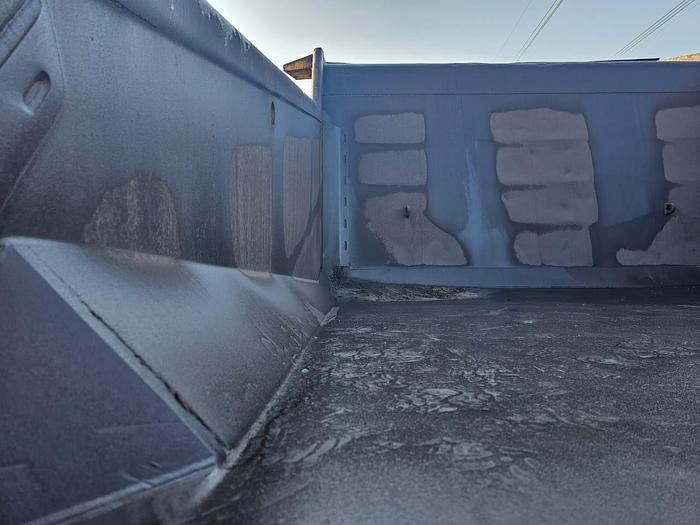

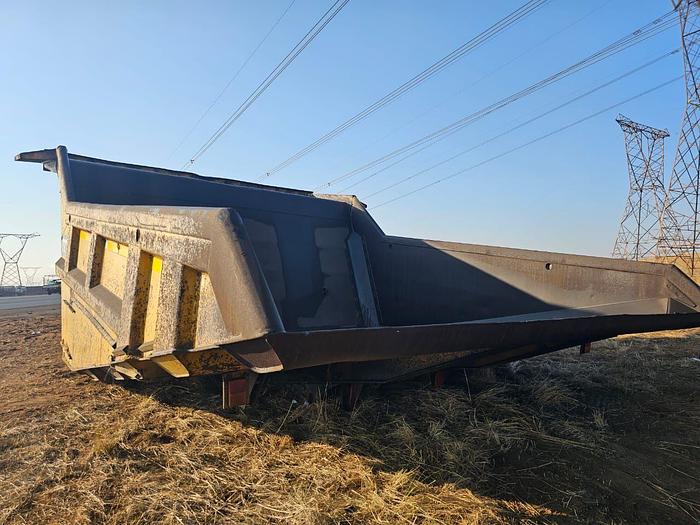

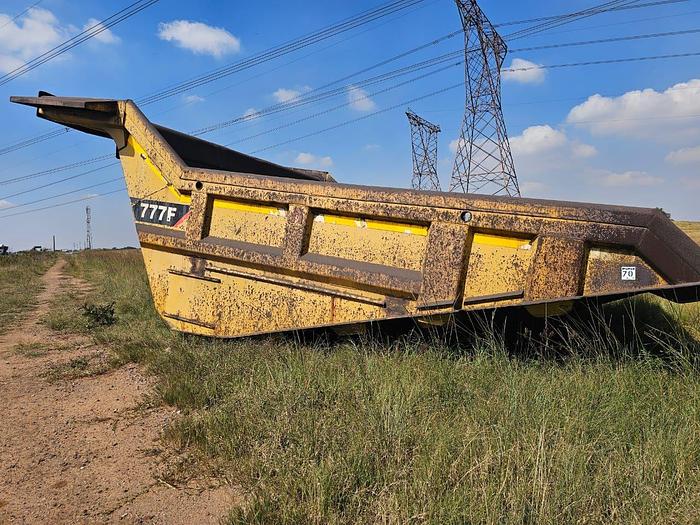

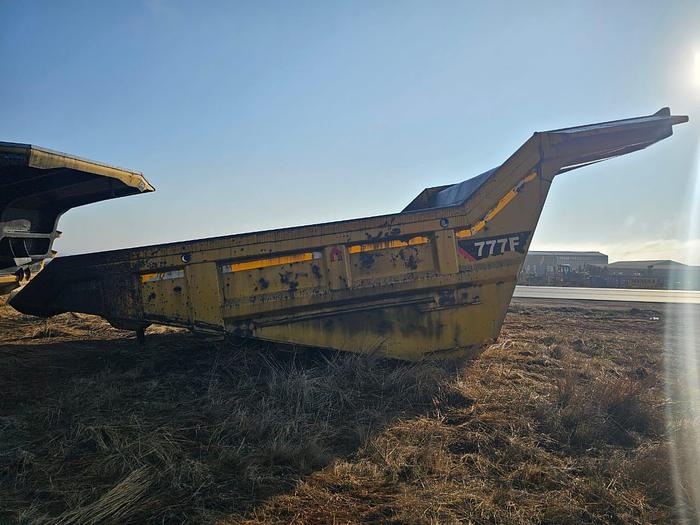

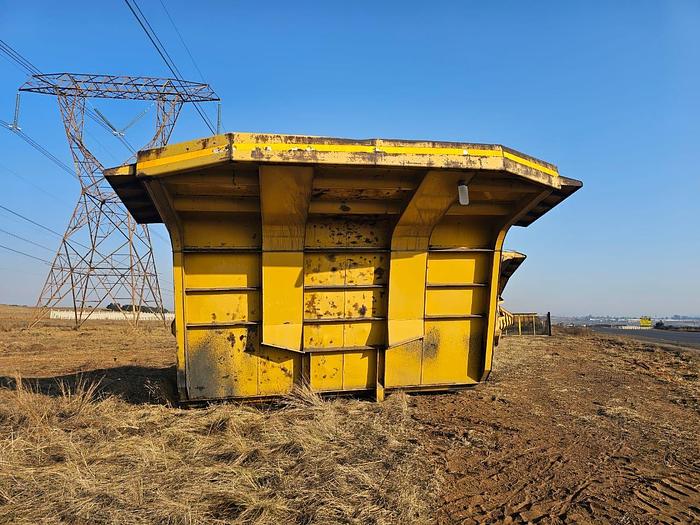

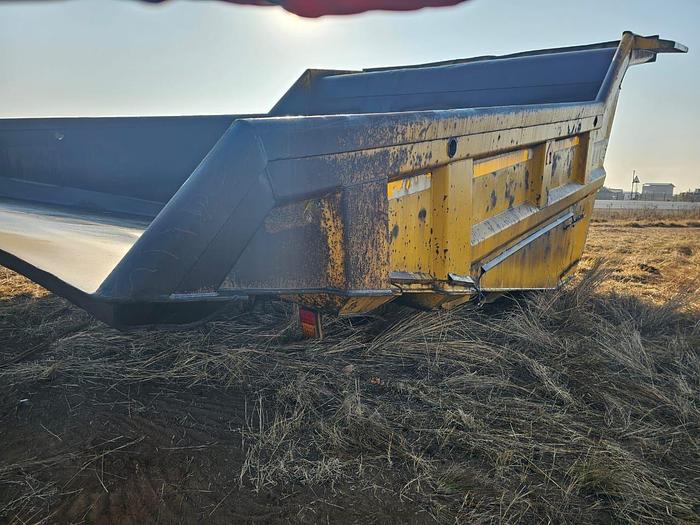

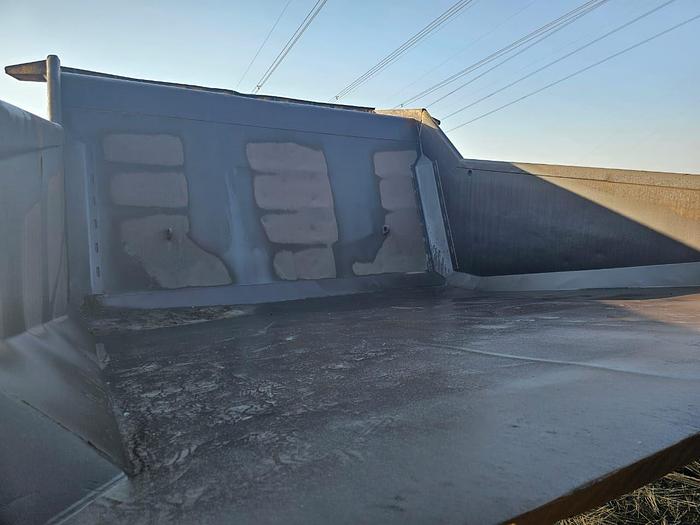

CATERPILLAR 777F DUMPER BED

BOWL INFORMATION

BOWL MANUFACTURER: CAT

BOWL MODEL: 777F

BOWL YEAR: UNKNOWN

BOWL SERIAL NUMBER: UNKNOWN

BOWL WEIGHT: 70.2 TON

BOWL DUMP CAPACITY:60M3

BOWL NET LOAD: 98.5T

BOWL TRANSPORT LENGTH: 9.83M

OVERALL BODY LENGTH

OVERALL, BODY DUAL SLOPE: 9 830 MM (32.20 FT)

OVERALL, BODY X BODY: 10 070 MM (33.04 FT)

OVERALL, BODY COAL BODY 1: 10 274 MM(33.71FT)

OVERALL, BODY COAL BODY 2: 10 445 MM (34.27FT)I

NSIDE BODY LEGNTH

INSIDE BODY DUAL SLOPE: 6 580 MM (21.50 FT)

INSIDE BODY X BODY: 7 037 MM (23.09 FT)

INSIDE BODY COAL BODY 1: 7 562 MM (24.81 FT)

INSIDE BODY COAL BODY 2: 7 734 MM (25.37 FT)

DUMP CLEARANCE

DUMP CLEARANCE DUAL SLOPE: 965MM (3.10 FT)

DUMP CLEARANCE X BODY: 893 MM (2.93 FT)

DUMP CLEARANCE COAL BODY 1: 935 MM (3.07 FT)

DUMP CLEARANCE COAL BODY 2: 821 MM (2.69 FT)

LOADING HEIGHT - EMPTY

LOADING HEIGHT DUAL SLOPE: 4 380 MM (14.30 FT)

LOADING HEIGHT X BODY: 4 429 MM (14.53 FT)

LOADING HEIGHT COAL BODY 1: 4 851 MM (15.92 FT)

LOADING HEIGHT COAL BODY 2: 5 321 MM (17.46 FT)

INSIDE BODY DEPTH - MAX

INSIDE BODY DUAL SLOPE: 1 895 MM (6.20 FT)

INSIDE BODY DUAL X BODY: 1 777 MM (5.83 FT)

INSIDE BODY DUAL COAL BODY 1: 2 223 MM (7.29 FT)

INSIDE BODY DUAL COAL BODY 2: 2 693 MM (8.84 FT)

OVERALL HEIGHT - BODY RAISED

OVERALL HEIGHT - BODY RAISED DUAL SLOPE: 9 953 MM (32.60 FT)

OVERALL HEIGHT - BODY RAISED X BODY: 10 071 MM (33.04 FT)

OVERALL HEIGHT - BODY RAISED COAL BODY 1: 10 319 MM (33.85 FT)

OVERALL HEIGHT - BODY RAISED COAL BODY 2: 10 319 MM (33.85 FT)

OPERATING WIDTH

OPERATING WIDTH DUAL SLOPE: 6 687 MM (21.94 FT)

OPERATING WIDTH X BODY: 6 687 MM (21.94 FT)

OPERATING WIDTH COAL BODY 1: 6 706 MM (22.00 FT)

OPERATING WIDTH COAL BODY 2: 6 706 MM (22.00 FT)

OVERALL CANOPY WIDTH

OVERALL CANOPY WIDTH DUAL SLOPE: 6 200 MM (20.34 FT)

OVERALL CANOPY WIDTH X BODY: 6 200 MM (20.34 FT)

OVERALL CANOPY WIDTH COAL BODY 1: 6 404 MM (21.01 FT)

OVERALL CANOPY WIDTH COAL BODY 2: 6 404 MM (21.01 FT)

OUTSIDE BODY WIDTH

OUTSIDE BODY WIDTH DUAL SLOPE: 5 524 MM (18.10 FT)

OUTSIDE BODY WIDTH X BODY: 5 682 MM (18.64 FT)

OUTSIDE BODY WIDTH COAL BODY 1: 6 365 MM (20.88 FT)

OUTSIDE BODY WIDTH COAL BODY 2: 6 368 MM (20.89 FT)

INSIDE BODY WIDTH

INSIDE BODY WIDTH DUAL SLOPE: 5 200 MM (17.00 FT)

INSIDE BODY WIDTH X BODY: 5 450 MM (17.88 FT)

INSIDE BODY WIDTH COAL BODY 1: 6 150 MM (20.18 FT)

INSIDE BODY WIDTH COAL BODY 2: 6 150 MM (20.18 FT)
